Market

The whole specialty in rocks from carved, cut from rocks and designed. The best equipment to work on all types of rocks.

Sub Levels of Rock Speciality

Additional Attachments

A variety of additional attachment can be provided which include,Topcon GPS,Rippers,Augers Tilt Buckets,Hammers...

Bulk Earthworks

Saws in conjunction with dozers and large excavators can achieve a bulk excavation with detailed sawn walls which eliminate the non productive trimming of walls with hydraulic hammers

Diamond Tip Saws

Diamond saws are used for the same type of jobs as the tungsten saws but can cut much harder material including very hard Bluestone, Granite, Marble, Tuff, Concrete etc.

Diamond tips are designed to cut faster, cleaner, quieter and with no dust and segments can be designed depending on what type of rock we are cutting

Maximum cutting width is 16 mm

Blades available are from 1.2 m – 3.0 m in diameter

AVAILABLE FROM 5 - 22 T EXCAVATORS

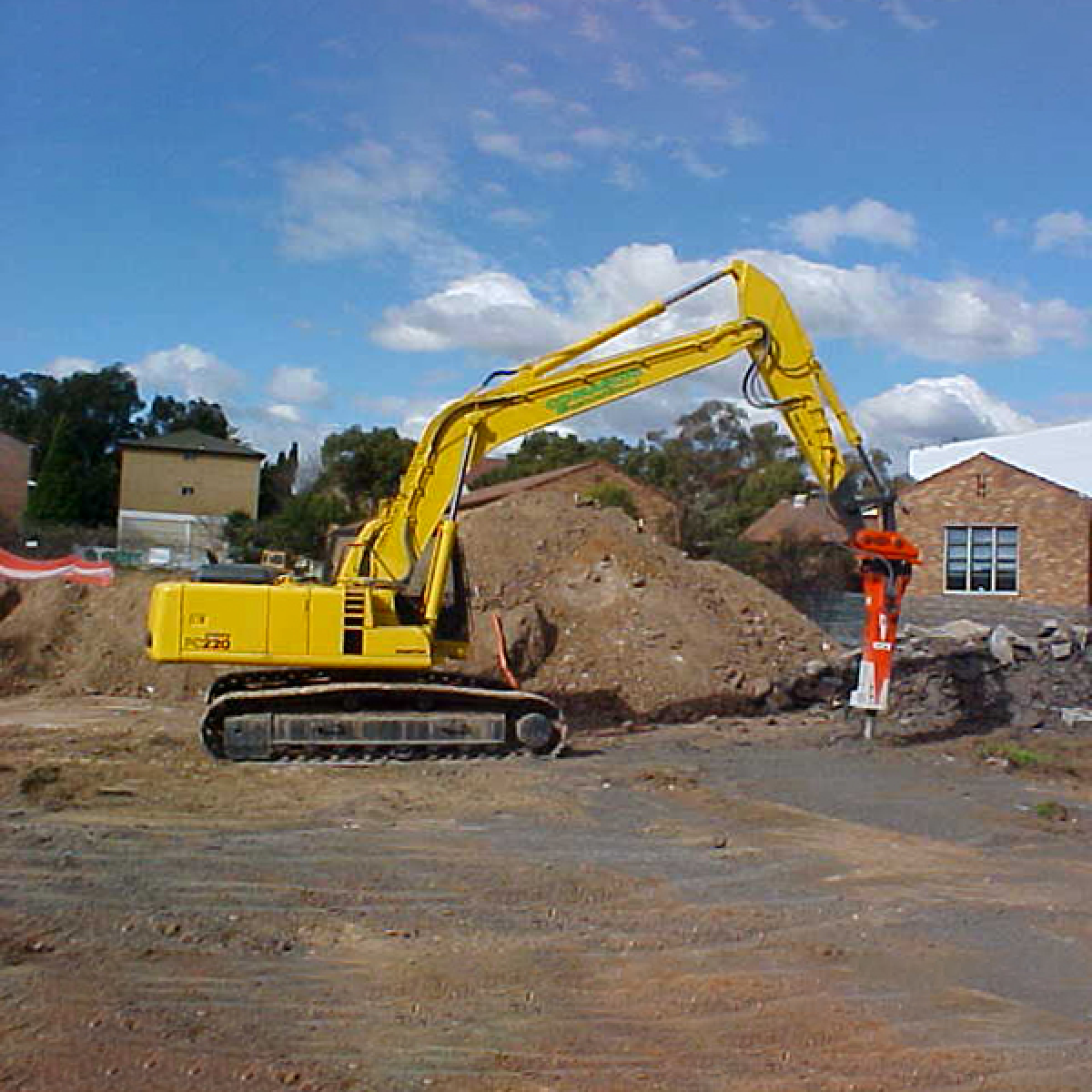

Hammer

Non-Vibration

YEAR: 2009

STATE: New South Wales

LOCATION: Sydney

EQUIPMENT USED

Non - Vibration earthworks of heritage listed house to make way for garage and new bedroom

Non-Vibration Earthworks

YEAR: 2011

STATE: Queensland

LOCATION: Brisbane

Rock Augers

Rock and Dirt augers available from 13 T to 22 T Excavators with a wide range of sizes available.

Rock Detail

Rock saws and grinders play a large part in rock detail and non vibration earthworks as it eliminates the vibration from hammers to adjoining properties .

DETAIL:

Rock Sawing

Grinding

Rock Drilling

By utilizing saws and grinders for detail we can achieve precision excavation without the blow out of rock and concrete .

Rock Grinders

Rock grinders can be use for a variety of jobs from trenching, trimming walls and floors, driveways ,detail works and concrete

Mostly use for final trim of rock floors and jobs that require a non – vibration attachment.

AVAILABLE FROM 13 - 35 T EXCAVATORS

Rock Sawing

Rock saws can be used for the following:

Trenching

Sub Soil Sawing

Quarry Blocking

Non – Vibration Earthworks

Demolition

Boundary Sawing

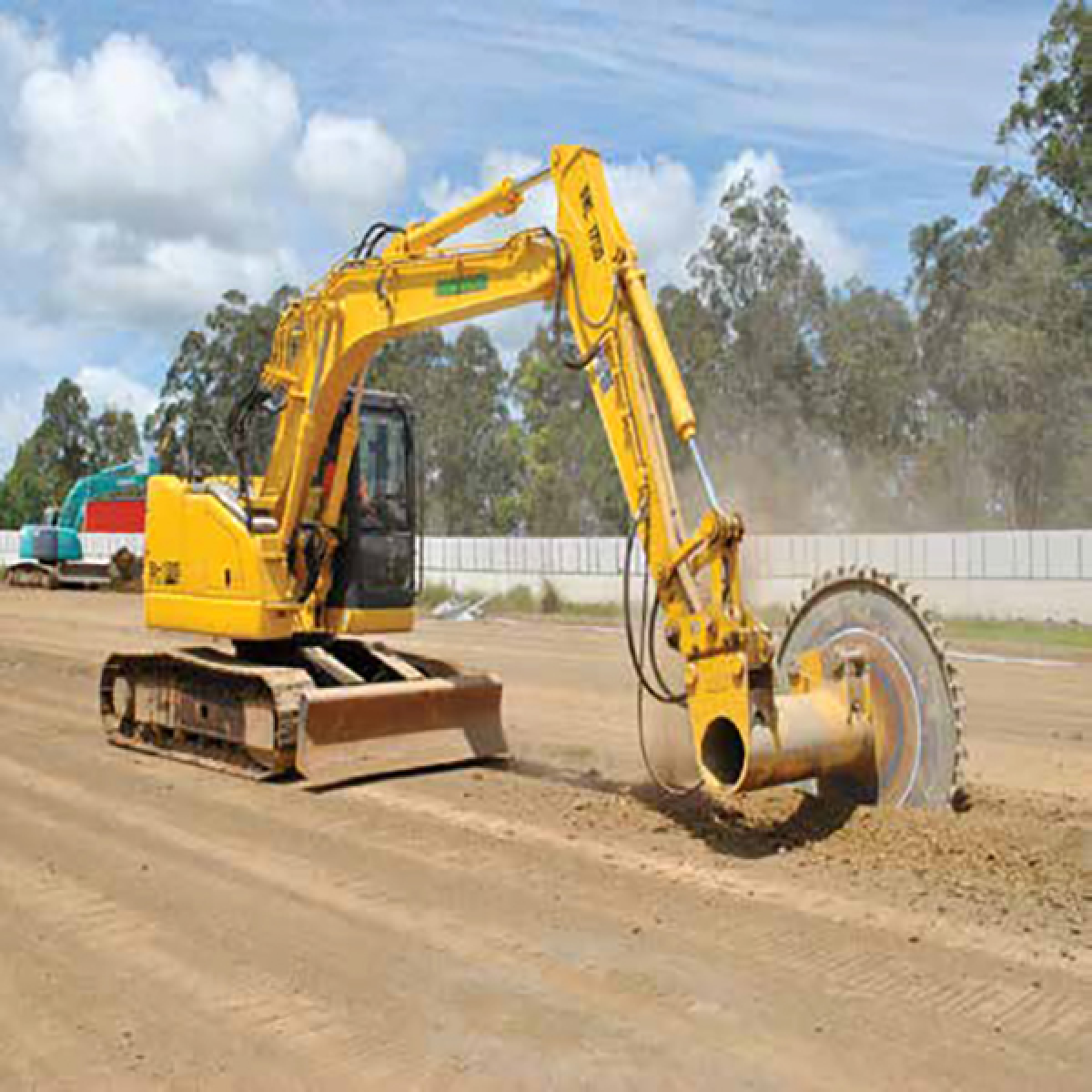

Subsoil Sawing

YEAR: 2010

STATE: Queensland

LOCATION: Gympie - Greater Region

EQUIPMENT USED

A Subsoil saw and a 14 T and 22 T excavators were used to saw cut a trench .600mm deep x .200mm wide in bluestone and sandstone for Agi Line drainage

Tungsten Tip Saws

Tungsten saws are used for sawing detail , trenches, quarry blocking and bulk sawing of walls when rock strengths are rated from soft to hard

Sandstone , Shale , Limestone , Tuff , soft Bluestone are just some of the materials that these saws can cut depending on blade and pattern type

Average pattern width is around 75mm plus

Other blades available for these saws are 150mm to 200 cut for irrigation lines etc

AVAILABLE FROM 5 - 35 T EXCAVATORS
